general purpose

4 flute end mill

FlutesEnd StylesMaterialCoating Options
4Square, Corner Rad, & BallCarbideUncoated, or TiAlN

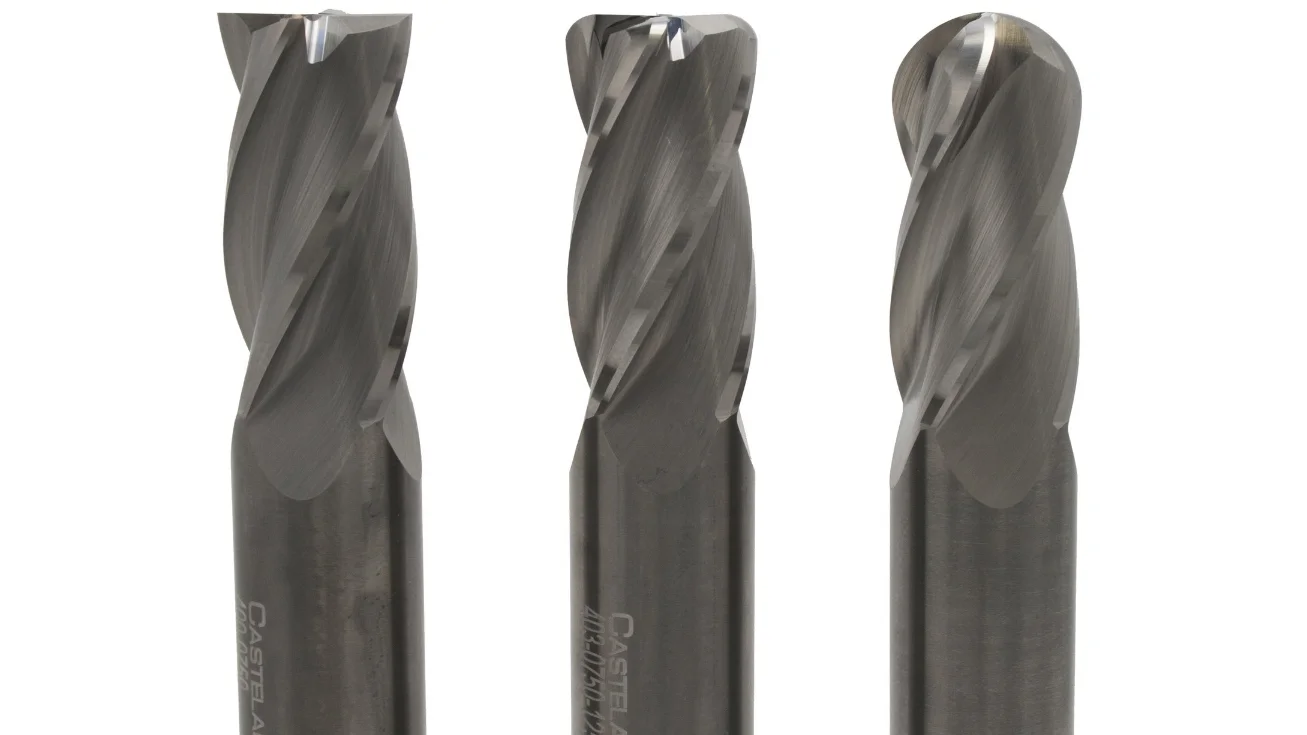

Series 400.jpg

KEY FEATURES:

  • Excellent choice for moderate chip removal, with plunging capabilities.
  • Center cutting
  • Inch and metric sizes stocked
  • H6 shank tolerance.
  • Premium sub-micron grade carbide.
  • Alternate coatings available to tailor the tool to your application.

Proudly made in Canada.

END STYLE

Square End - Inch
CUTTING DIA.LOCOALSHANK DIA.UNCOATEDTiAlN
1/32"1/16"1-1/2"1/8"420-0031420-0031A
1/32"1/8"1-1/2"1/8"400-0031400-0031A
1/32"1/4"2"1/8"410-0031410-0031A
3/64"1/8"1-1/2"1/8"400-0046400-0046A
3/64"3/32"1-1/2"1/8"420-0046420-0046A
1/16"1/8"1-1/2"1/8"420-0062420-0062A
1/16"1/4"1-1/2"1/8"400-0062400-0062A
1/16"3/8"2"1/8"410-0062410-0062A
5/64"5/32"1-1/2"1/8"420-0078420-0078A
5/64"1/4"1-1/2"1/8"400-0078400-0078A
3/32"3/16"1-1/2"1/8"420-0093420-0093A
3/32"3/8"1-1/2"1/8"400-0093400-0093A
7/64"7/32"1-1/2"1/8"420-0109420-0109A
7/64"3/8"1-1/2"1/8"400-0109400-0109A
1/8"1/4"1-1/2"1/8"420-0125420-0125A
1/8"1/2"1-1/2"1/8"400-0125400-0125A
1/8"3/4"2"1/8"410-0125-07-20410-0125-07-20A
1/8"1"3"1/8"410-0125-10-30410-0125-10-30A
9/64"9/16"2"3/16"400-0140400-0140A
5/32"5/16"2"3/16"420-0156420-0156A
5/32"9/16"2"3/16"400-0156400-0156A
11/64"5/8"2"3/16"400-0171400-0171A
3/16"3/8"2"3/16"420-0187420-0187A
3/16"5/8"2"3/16"400-0187400-0187A
3/16"3/4"2-1/2"3/16"410-0187-07-25410-0187-07-25A
3/16"1"3"3/16"410-0187-10-30410-0187-10-30A
3/16"1"4"3/16"410-0187-10-40410-0187-10-40A
3/16"1"6"3/16"410-0187-10-60410-0187-10-60A
3/16"1-1/8"4"3/16"410-0187-11-40410-0187-11-40A
3/16"1-1/4"3"3/16"410-0187-12-30410-0187-12-30A
3/16"1-1/4"4"3/16"410-0187-12-40410-0187-12-40A
13/64"5/8"2-1/2"1/4"400-0203400-0203A
7/32"7/16"2"1/4'420-0218420-0218A
7/32"5/8"2-1/2"1/4"400-0218400-0218A
15/64"1/2"2-1/2"1/4"420-0234420-0234A
15/64"3/4"2-1/2"1/4"400-0234400-0234A
1/4"1/2"2"1/4"420-0250420-0250A
1/4"3/4"2-1/2"1/4"400-0250400-0250A
1/4"1"3"1/4"410-0250-10-30410-0250-10-30A
1/4"1"4"1/4"410-0250-10-40410-0250-10-40A
1/4"1-1/8"4"1/4"410-0250-11-30410-0250-11-30A
1/4"1-1/2"4"1/4"410-0250-15-40410-0250-15-40A
1/4"1-1/2"6"1/4"410-0250-15-60410-0250-15-60A
1/4"2"4"1/4"410-0250-20-40410-0250-20-40A
1/4"3"6"1/4"410-0250-30-60410-0250-30-60A
17/64"3/4"2-1/2"5/16"400-0266400-0266A
9/32"3/4"2-1/2"5/16"400-0281400-0281A
9/32"1"3"5/16"410-0281-10-30410-0281-10-30A
9/32"1-5/8"4"5/16"410-0281-16-40410-0281-16-40A
19/64"13/16"2-1/2"5/16"400-0296400-0296A
5/16"1/2"2"5/16"420-0312420-0312A
5/16"13/16"2-1/2"5/16"400-0312400-0312A
5/16"1"4"5/16"410-0312-10-40410-0312-10-40A
5/16"1-1/8"3"5/16"410-0312-11-30410-0312-11-30A
5/16"1-1/8"4"5/16"410-0312-11-40410-0312-11-40A
5/16"1-1/2"4"5/16"410-0312-15-40410-0312-15-40A
5/16"1-1/2"6"5/16"410-0312-15-60410-0312-15-60A
5/16"1-5/8"4"5/16"410-0312-16-40410-0312-16-40A
21/64"7/8"2-1/2"3/8"400-0328400-0328A
11/32"7/8"2-1/2"3/8"400-0343400-0343A
11/32"1-1/8"4"3/8"410-0343-11-40410-0343-11-40A
11/32"2"4"3/8"410-0343-20-40410-0343-20-40A
23/64"7/8"2-1/2"3/8"400-0359400-0359A
23/64"1-1/4"3-1/2"3/8"410-0359-13-35410-0359-13-35A
3/8"5/8"2"3/8"420-0375420-0375A
3/8"7/8"2-1/2"3/8"400-0375400-0375A
3/8"1"4"3/8"410-0375-10-40410-0375-10-40A
3/8"1"6"3/8"410-0375-10-60410-0375-10-60A
3/8"1-1/8"3"3/8"410-0375-11-30410-0375-11-30A
3/8"1-1/2"4"3/8"410-0375-15-40410-0375-15-40A
3/8"1-1/2"6"3/8"410-0375-15-60410-0375-15-60A
3/8"1-3/4"4"3/8"410-0375-18-40410-0375-18-40A
3/8"2"4"3/8"410-0375-20-40410-0375-20-40A
3/8"3"6"3/8"410-0375-30-60410-0375-30-60A
25/64"1"2-3/4"7/16"400-0390400-0390A
13/32"1"2-3/4"7/16"400-0406400-0406A
13/32"2"4"7/16"410-0406-20-40410-0406-20-40A
27/64"1"2-3/4"7/16"400-0422400-0422A
7/16"5/8"2-3/4"7/16"420-0437420-0437A
7/16"1"2-3/4"7/16"400-0437400-0437A
7/16"1-1/2"6"7/16"410-0437-15-60410-0437-15-60A
7/16"2"4"7/16"410-0437-20-40410-0437-20-40A
7/16"2"6"7/16"410-0437-20-60410-0437-20-60A
7/16"3"6"7/16"410-0437-30-60410-0437-30-60A
29/64"1"3"1/2"400-0453400-0453A
15/32"1"3"1/2"400-0468400-0468A
15/32"2"4"1/2"410-0468-20-40410-0468-20-40A
31/64"1"3"1/2"400-0484400-0484A
1/2"5/8"3"1/2"420-0500420-0500A
1/2"1"3"1/2"400-0500400-0500A
1/2"1"4"1/2"410-0500-10-40410-0500-10-40A
1/2"1"6"1/2"410-0500-10-60410-0500-10-60A
1/2"1-1/2"4"1/2"410-0500-15-40410-0500-15-40A
1/2"1-1/2"6"1/2"410-0500-15-60410-0500-15-60A
1/2"2"4"1/2"410-0500-20-40410-0500-20-40A
1/2"2-1/2"5"1/2"410-0500-25-50410-0500-25-50A
1/2"3"6"1/2"410-0500-30-60410-0500-30-60A
1/2"3-1/2"6"1/2"410-0500-35-60410-0500-35-60A
1/2"4"6"1/2"410-0500-40-60410-0500-40-60A
1/2"4"9"1/2"410-0500-40-90410-0500-40-90A
33/64"1-1/8"3-1/2"9/16"400-0516400-0516A
17/32"1-1/8"3-1/2"9/16"400-0531400-0531A
9/16"1-1/4"3-1/2"9/16"400-0562400-0562A
9/16"1-1/2"6"5/8"410-0562-15-60410-0562-15-60A
9/16"2-1/2"6"5/8"410-0562-25-60410-0562-25-60A
19/32"1-1/4"3-1/2"5/8"400-0593400-0593A
5/8"3/4"3"5/8"420-0625420-0625A
5/8"1-1/4"3-1/2"5/8"400-0625400-0625A
5/8"1-1/2"6"5/8"410-0625-15-60410-0625-15-60A
5/8"2"4"5/8"410-0625-20-40410-0625-20-40A
5/8"2"6"5/8"410-0625-20-60410-0625-20-60A
5/8"2-1/4"5"5/8"410-0625-22-50410-0625-22-50A
5/8"2-1/2"6"5/8"410-0625-25-60410-0625-25-60A
5/8"3"6"5/8"410-0625-30-60410-0625-30-60A
5/8"4"7"5/8"410-0625-40-70410-0625-40-70A
11/16"1-1/2"4"3/4"400-0687400-0687A
23/32"1-1/2"4"3/4"400-0718400-0718A
3/4"1"3"3/4"420-0750420-0750A
3/4"1-1/2"4"3/4"400-0750400-0750A
3/4"1-1/2"6"3/4"410-0750-15-60410-0750-15-60A
3/4"2-1/4"5"3/4"410-0750-22-50410-0750-22-50A
3/4"2-1/2"5"3/4"410-0750-25-50410-0750-25-50A
3/4"2-1/2"6"3/4"410-0750-25-60410-0750-25-60A
3/4"3"6"3/4"410-0750-30-60410-0750-30-60A
3/4"3"7"3/4"410-0750-30-70410-0750-30-70A
3/4"3"8"3/4"410-0750-30-80410-0750-30-80A
3/4"3-1/2"6"3/4"410-0750-35-60410-0750-35-60A
3/4"4"7"3/4"410-0750-40-70410-0750-40-70A
3/4"4-1/2"7"3/4"410-0750-45-70410-0750-45-70A
25/32"1-1/2"4"7/8"400-0781400-0781A
13/16"1-1/2"4"7/8"400-0813400-0813A
7/8"1"4"7/8"420-0875420-0875A
7/8"1-1/2"4"7/8"400-0875400-0875A
7/8"2"6"7/8"410-0875-20-60410-0875-20-60A
7/8"3"6"7/8"410-0875-30-60410-0875-30-60A
7/8"3"8"7/8"410-0875-30-80410-0875-30-80A
7/8"3-1/2"6"7/8"410-0875-35-60410-0875-35-60A
7/8"6"8-1/2"7/8"410-0875-60-85410-0875-60-85A
15/16"1-1/2"4"1"400-0937400-0937A
1"1"4"1"420-1000420-1000A
1"1-1/2"4"1"400-1000400-1000A
1"1-1/2"8"1"410-1000-15-80410-1000-15-80A
1"2"5"1"410-1000-20-50410-1000-20-50A
1"2-1/4"5"1"410-1000-22-50410-1000-22-50A
1"2-1/4"6"1"410-1000-23-60410-1000-23-60A
1"2-1/2"5"1"410-1000-25-50410-1000-25-50A
1"2-1/2"6"1"410-1000-25-60410-1000-25-60A
1"3"6"1"410-1000-30-60410-1000-30-60A
1"3"8"1"410-1000-30-80410-1000-30-80A
1"3-1/2"6"1"410-1000-35-60410-1000-35-60A
1"3-1/2"7"1"410-1000-35-70410-1000-35-70A
1"4"7"1"410-1000-40-70410-1000-40-70A
1"4"8"1"410-1000-40-80410-1000-40-80A
1"4-1/2"7"1"410-1000-45-70410-1000-45-70A
1"4-1/2"7-1/2"1"410-1000-45-75410-1000-45-75A
1"5"7-1/2"1"410-1000-50-75410-1000-50-75A
1"5"8"1"410-1000-50-80410-1000-50-80A
1"6"8"1"410-1000-60-80410-1000-60-80A
1-1/4"2-1/2"5"1-1/4"410-1250-25-50410-1250-25-50A
1-1/4"3"6"1-1/4"410-1250-30-60410-1250-30-60A
1-1/4"6"8-1/2"1-1/4"410-1250-60-85410-1250-60-85A
Square End - Metric
CUTTING DIA.LOCOALSHANK DIA.Uncoated
1.0mm3.0 mm38.0 mm3.0 mmM400-0100
1.5mm4.5 mm38.0 mm3.0 mmM400-0150
2.0mm6.3 mm38.0 mm3.0 mmM400-0200
2.5mm9.5 mm38.0 mm3.0 mmM400-0250
3.0mm12.0 mm38.0 mm3.0 mmM400-0300
3.5mm12.0 mm50.0 mm4.0 mmM400-0350
4.0mm14.0 mm50.0 mm4.0 mmM400-0400
4.5mm16.0 mm50.0 mm5.0 mmM400-0450
5.0mm16.0 mm50.0 mm5.0 mmM400-0500
6.0mm19.0 mm63.0 mm6.0 mmM400-0600
7.0mm22.0 mm63.0 mm8.0 mmM400-0700
8.0mm22.0 mm63.0 mm8.0 mmM400-0800
9.0mm22.0 mm63.0 mm10.0 mmM400-0900
10.0 mm25.0 mm63.0 mm10.0 mmM400-1000
11.0 mm25.0 mm76.0 mm11.0 mmM400-1100
12.0 mm25.0 mm76.0 mm12.0 mmM400-1200
13.0 mm32.0 mm89.0 mm14.0 mmM400-1300
14.0 mm32.0 mm89.0 mm14.0 mmM400-1400
15.0 mm35.0 mm89.0 mm16.0 mmM400-1500
16.0 mm38.0 mm89.0 mm16.0 mmM400-1600
18.0 mm38.0 mm100.0 mm18.0 mmM400-1800
20.0 mm38.0 mm100.0 mm20.0 mmM400-2000
22.0 mm38.0 mm100.0 mm22.0 mmM400-2200
25.0 mm38.0 mm100.0 mm25.0 mmM400-2500
Corner Rad - Inch
CUTTING DIA.LOCOALSHANK LENGTHCORNER RADIUSUNCOATEDTiAlN
1/16"1/8"1-1/2"1/8".015403-0062-015403-0062-015A
1/16"1/8"1-1/2"1/8".020403-0062-020403-0062-020A
1/16"1/8"1-1/2"1/8".015403-0093-015403-0093-015A
3/32"3/16"1-1/2"1/8".020403-0093-020403-0093-020A
3/32"3/16"1-1/2"1/8".030403-0093-020403-0093-020A
1/8"1/4"1-1/2"1/8".015403-0125-015403-0125-015A
1/8"1/4"1-1/2"1/8".020403-0125-020403-0125-020A
1/8"1/4"1-1/2"1/8".030403-0125-030403-0125-030A
1/8"1/4"1-1/2"1/8".045403-0125-045403-0125-045A
5/32"5/16"2"3/16".015403-0156-015403-0156-015A
5/32"5/16"2"3/16".020403-0156-020403-0156-020A
5/32"5/16"2"3/16".030403-0156-030403-0156-030A
5/32"5/16"2"3/16".045403-0156-045403-0156-045A
5/32"5/16"2"3/16".060403-0156-060403-0156-060A
3/16"3/8"2"3/16".015403-0187-015403-0187-015A
3/16"3/8"2"3/16".020403-0187-020403-0187-020A
3/16"3/8"2"3/16".030403-0187-030403-0187-030A
3/16"3/8"2"3/16".045403-0187-045403-0187-045A
3/16"3/8"2"3/16".060403-0187-060403-0187-060A
1/4"1/2"2"1/4".015403-0250-015403-0250-015A
1/4"1/2"2"1/4".020403-0250-020403-0250-020A
1/4"1/2"2"1/4".030403-0250-030403-0250-030A
1/4"1/2"2"1/4".045403-0250-045403-0250-045A
1/4"1/2"2"1/4".060403-0250-060403-0250-060A
5/16"1/2"2"5/16".015403-0312-015403-0312-015A
5/16"1/2"2"5/16".020403-0312-020403-0312-020A
5/16"1/2"2"5/16".030403-0312-030403-0312-030A
5/16"1/2"2"5/16".045403-0312-045403-0312-045A
5/16"1/2"2"5/16".060403-0312-060403-0312-060A
3/8"5/8"2"3/8".015403-0375-015403-0375-015A
3/8"5/8"2"3/8".020403-0375-020403-0375-020A
3/8"5/8"2"3/8".030403-0375-030403-0375-030A
3/8"5/8"2"3/8".045403-0375-045403-0375-045A
3/8"5/8"2"3/8".060403-0375-060403-0375-060A
1/2"5/8"3"1/2".015403-0500-015403-0500-015A
1/2"5/8"3"1/2".020403-0500-020403-0500-020A
1/2"5/8"3"1/2".030403-0500-030403-0500-030A
1/2"5/8"3"1/2".045403-0500-045403-0500-045A
1/2"5/8"3"1/2".060403-0500-060403-0500-060A
1/2"5/8"3"1/2".090403-0500-090403-0500-090A
1/2"5/8"3"1/2".125403-0500-125403-0500-125A
5/8"3/4"3"5/8".015403-0625-015403-0625-015A
5/8"3/4"3"5/8".020403-0625-020403-0625-020A
5/8"3/4"3"5/8".030403-0625-030403-0625-030A
5/8"3/4"3"5/8".045403-0625-045403-0625-045A
5/8"3/4"3"5/8".060403-0625-060403-0625-060A
5/8"3/4"3"5/8".090403-0625-090403-0625-090A
5/8"3/4"3"5/8".125403-0625-125403-0625-125A
3/4"1"3"3/4".015403-0750-015403-0750-015A
3/4"1"3"3/4".020403-0750-020403-0750-020A
3/4"1"3"3/4".030403-0750-030403-0750-030A
3/4"1"3"3/4".045403-0750-045403-0750-045A
3/4"1"3"3/4".060403-0750-060403-0750-060A
3/4"1"3"3/4".090403-0750-090403-0750-090A
3/4"1"3"3/4".125403-0750-125403-0750-125A
1"1"4"1".015403-1000-015403-1000-015A
1"1"4"1".020403-1000-020403-1000-020A
1"1"4"1".030403-1000-030403-1000-030A
1"1"4"1".045403-1000-045403-1000-045A
1"1"4"1".060403-1000-060403-1000-060A
1"1"4"1".090403-1000-090403-1000-090A
1"1"4"1".125403-1000-125403-1000-125A
Ball Nose - Inch
CUTTING DIA.LOCOALSHANK DIA.UNCOATEDTiAlN
1/32"1/16"1-1/2"1/8"421-0031421-0031A
1/32"1/8"1-1/2"1/8"401-0031401-0031A
1/32"1/4"2"1/8"411-0031411-0031A
3/64"1/8"1-1/2"1/8"401-0046401-0046A
3/64"3/32"1-1/2"1/8"421-0046421-0046A
1/16"1/8"1-1/2"1/8"421-0062421-0062A
1/16"1/4"1-1/2"1/8"401-0062401-0062A
1/16"3/8"2"1/8"411-0062411-0062A
5/64"5/32"1-1/2"1/8"421-0078421-0078A
5/64"1/4"1-1/2"1/8"401-0078401-0078A
3/32"3/16"1-1/2"1/8"421-0093421-0093A
3/32"3/8"1-1/2"1/8"401-0093401-0093A
7/64"7/32"1-1/2"1/8"421-0109421-0109A
7/64"3/8"1-1/2"1/8"401-0109401-0109A
1/8"1/4"1-1/2"1/8"421-0125421-0125A
1/8"1/2"1-1/2"1/8"401-0125401-0125A
1/8"3/4"2"1/8"411-0125-07-20411-0125-07-20A
1/8"1"3"1/8"411-0125-10-30411-0125-10-30A
9/64"9/16"2"3/16"401-0140401-0140A
5/32"5/16"2"3/16"421-0156421-0156A
5/32"9/16"2"3/16"401-0156401-0156A
11/64"5/8"2"3/16"401-0171401-0171A
3/16"3/8"2"3/16"421-0187421-0187A
3/16"5/8"2"3/16"401-0187401-0187A
3/16"3/4"2-1/2"3/16"411-0187-07-25411-0187-07-25A
3/16"1"3"3/16"411-0187-10-30411-0187-10-30A
3/16"1"4"3/16"411-0187-10-40411-0187-10-40A
3/16"1"6"3/16"411-0187-10-60411-0187-10-60A
3/16"1-1/8"4"3/16"411-0187-11-40411-0187-11-40A
3/16"1-1/4"3"3/16"411-0187-12-30411-0187-12-30A
3/16"1-1/4"4"3/16"411-0187-12-40411-0187-12-40A
13/64"5/8"2-1/2"1/4"401-0203401-0203A
7/32"7/16"2"1/4'421-0218421-0218A
7/32"5/8"2-1/2"1/4"401-0218401-0218A
15/64"1/2"2-1/2"1/4"421-0234421-0234A
15/64"3/4"2-1/2"1/4"401-0234401-0234A
1/4"1/2"2"1/4"421-0250421-0250A
1/4"3/4"2-1/2"1/4"401-0250401-0250A
1/4"1"3"1/4"411-0250-10-30411-0250-10-30A
1/4"1"4"1/4"411-0250-10-40411-0250-10-40A
1/4"1-1/8"4"1/4"411-0250-11-30411-0250-11-30A
1/4"1-1/2"4"1/4"411-0250-15-40411-0250-15-40A
1/4"1-1/2"6"1/4"411-0250-15-60411-0250-15-60A
1/4"2"4"1/4"411-0250-20-40411-0250-20-40A
1/4"3"6"1/4"411-0250-30-60411-0250-30-60A
17/64"3/4"2-1/2"5/16"401-0266401-0266A
9/32"3/4"2-1/2"5/16"401-0281401-0281A
9/32"1"3"5/16"411-0281-10-30411-0281-10-30A
9/32"1-5/8"4"5/16"411-0281-16-40411-0281-16-40A
19/64"13/16"2-1/2"5/16"401-0296401-0296A
5/16"1/2"2"5/16"421-0312421-0312A
5/16"13/16"2-1/2"5/16"401-0312401-0312A
5/16"1"4"5/16"411-0312-10-40411-0312-10-40A
5/16"1-1/8"3"5/16"411-0312-11-30411-0312-11-30A
5/16"1-1/8"4"5/16"411-0312-11-40411-0312-11-40A
5/16"1-1/2"4"5/16"411-0312-15-40411-0312-15-40A
5/16"1-1/2"6"5/16"411-0312-15-60411-0312-15-60A
5/16"1-5/8"4"5/16"411-0312-16-40411-0312-16-40A
21/64"7/8"2-1/2"3/8"401-0328401-0328A
11/32"7/8"2-1/2"3/8"401-0343401-0343A
11/32"1-1/8"4"3/8"411-0343-11-40411-0343-11-40A
11/32"2"4"3/8"411-0343-20-40411-0343-20-40A
23/64"7/8"2-1/2"3/8"401-0359401-0359A
23/64"1-1/4"3-1/2"3/8"411-0359-13-35411-0359-13-35A
3/8"5/8"2"3/8"421-0375421-0375A
3/8"7/8"2-1/2"3/8"401-0375401-0375A
3/8"1"4"3/8"411-0375-10-40411-0375-10-40A
3/8"1"6"3/8"411-0375-10-60411-0375-10-60A
3/8"1-1/8"3"3/8"411-0375-11-30411-0375-11-30A
3/8"1-1/2"4"3/8"411-0375-15-40411-0375-15-40A
3/8"1-1/2"6"3/8"411-0375-15-60411-0375-15-60A
3/8"1-3/4"4"3/8"411-0375-18-40411-0375-18-40A
3/8"2"4"3/8"411-0375-20-40411-0375-20-40A
3/8"3"6"3/8"411-0375-30-60411-0375-30-60A
25/64"1"2-3/4"7/16"401-0390401-0390A
13/32"1"2-3/4"7/16"401-0406401-0406A
13/32"2"4"7/16"411-0406-20-40411-0406-20-40A
27/64"1"2-3/4"7/16"401-0422401-0422A
7/16"5/8"2-3/4"7/16"421-0437421-0437A
7/16"1"2-3/4"7/16"401-0437401-0437A
7/16"1-1/2"6"7/16"411-0437-15-60411-0437-15-60A
7/16"2"4"7/16"411-0437-20-40411-0437-20-40A
7/16"2"6"7/16"411-0437-20-60411-0437-20-60A
7/16"3"6"7/16"411-0437-30-60411-0437-30-60A
29/64"1"3"1/2"401-0453401-0453A
15/32"1"3"1/2"401-0468401-0468A
15/32"2"4"1/2"411-0468-20-40411-0468-20-40A
31/64"1"3"1/2"401-0484401-0484A
1/2"5/8"3"1/2"421-0500421-0500A
1/2"1"3"1/2"401-0500401-0500A
1/2"1"4"1/2"411-0500-10-40411-0500-10-40A
1/2"1"6"1/2"411-0500-10-60411-0500-10-60A
1/2"1-1/2"4"1/2"411-0500-15-40411-0500-15-40A
1/2"1-1/2"6"1/2"411-0500-15-60411-0500-15-60A
1/2"2"4"1/2"411-0500-20-40411-0500-20-40A
1/2"2-1/2"5"1/2"411-0500-25-50411-0500-25-50A
1/2"3"6"1/2"411-0500-30-60411-0500-30-60A
1/2"3-1/2"6"1/2"411-0500-35-60411-0500-35-60A
1/2"4"6"1/2"411-0500-40-60411-0500-40-60A
1/2"4"9"1/2"411-0500-40-90411-0500-40-90A
33/64"1-1/8"3-1/2"9/16"401-0516401-0516A
17/32"1-1/8"3-1/2"9/16"401-0531401-0531A
9/16"1-1/4"3-1/2"9/16"401-0562401-0562A
9/16"1-1/2"6"5/8"411-0562-15-60411-0562-15-60A
9/16"2-1/2"6"5/8"411-0562-25-60411-0562-25-60A
19/32"1-1/4"3-1/2"5/8"401-0593401-0593A
5/8"3/4"3"5/8"421-0625421-0625A
5/8"1-1/4"3-1/2"5/8"401-0625401-0625A
5/8"1-1/2"6"5/8"411-0625-15-60411-0625-15-60A
5/8"2"4"5/8"411-0625-20-40411-0625-20-40A
5/8"2"6"5/8"411-0625-20-60411-0625-20-60A
5/8"2-1/4"5"5/8"411-0625-22-50411-0625-22-50A
5/8"2-1/2"6"5/8"411-0625-25-60411-0625-25-60A
5/8"3"6"5/8"411-0625-30-60411-0625-30-60A
5/8"4"7"5/8"411-0625-40-70411-0625-40-70A
11/16"1-1/2"4"3/4"401-0687401-0687A
23/32"1-1/2"4"3/4"401-0718401-0718A
3/4"1"3"3/4"421-0750421-0750A
3/4"1-1/2"4"3/4"401-0750401-0750A
3/4"1-1/2"6"3/4"411-0750-15-60411-0750-15-60A
3/4"2-1/4"5"3/4"411-0750-22-50411-0750-22-50A
3/4"2-1/2"5"3/4"411-0750-25-50411-0750-25-50A
3/4"2-1/2"6"3/4"411-0750-25-60411-0750-25-60A
3/4"3"6"3/4"411-0750-30-60411-0750-30-60A
3/4"3"7"3/4"411-0750-30-70411-0750-30-70A
3/4"3"8"3/4"411-0750-30-80411-0750-30-80A
3/4"3-1/2"6"3/4"411-0750-35-60411-0750-35-60A
3/4"4"7"3/4"411-0750-40-70411-0750-40-70A
3/4"4-1/2"7"3/4"411-0750-45-70411-0750-45-70A
25/32"1-1/2"4"7/8"401-0781401-0781A
13/16"1-1/2"4"7/8"401-0813401-0813A
7/8"1"4"7/8"421-0875421-0875A
7/8"1-1/2"4"7/8"401-0875401-0875A
7/8"2"6"7/8"411-0875-20-60411-0875-20-60A
7/8"3"6"7/8"411-0875-30-60411-0875-30-60A
7/8"3"8"7/8"411-0875-30-80411-0875-30-80A
7/8"3-1/2"6"7/8"411-0875-35-60411-0875-35-60A
7/8"6"8-1/2"7/8"411-0875-60-85411-0875-60-85A
15/16"1-1/2"4"1"401-0937401-0937A
1"1"4"1"421-1000421-1000A
1"1-1/2"4"1"401-1000401-1000A
1"1-1/2"8"1"411-1000-15-80411-1000-15-80A
1"2"5"1"411-1000-20-50411-1000-20-50A
1"2-1/4"5"1"411-1000-22-50411-1000-22-50A
1"2-1/4"6"1"411-1000-23-60411-1000-23-60A
1"2-1/2"5"1"411-1000-25-50411-1000-25-50A
1"2-1/2"6"1"411-1000-25-60411-1000-25-60A
1"3"6"1"411-1000-30-60411-1000-30-60A
1"3"8"1"411-1000-30-80411-1000-30-80A
1"3-1/2"6"1"411-1000-35-60411-1000-35-60A
1"3-1/2"7"1"411-1000-35-70411-1000-35-70A
1"4"7"1"411-1000-40-70411-1000-40-70A
1"4"8"1"411-1000-40-80411-1000-40-80A
1"4-1/2"7"1"411-1000-45-70411-1000-45-70A
1"4-1/2"7-1/2"1"411-1000-45-75411-1000-45-75A
1"5"7-1/2"1"411-1000-50-75411-1000-50-75A
1"5"8"1"411-1000-50-80411-1000-50-80A
1"6"8"1"411-1000-60-80411-1000-60-80A
1-1/4"2-1/2"5"1-1/4"411-1250-25-50411-1250-25-50A
1-1/4"3"6"1-1/4"411-1250-30-60411-1250-30-60A
1-1/4"6"8-1/2"1-1/4"411-1250-60-85411-1250-60-85A
Ball Nose - Metric
CUTTING DIA.LOCOALSHANK DIA.UNCOATEDTiAlN
1.0mm3.0 mm38.0 mm3.0 mmM401-0100M401-0100A
1.5mm4.5 mm38.0 mm3.0 mmM401-0150M401-0150A
2.0mm6.3 mm38.0 mm3.0 mmM401-0200M401-0200A
2.5mm9.5 mm38.0 mm3.0 mmM401-0250M401-0250A
3.0mm12.0 mm38.0 mm3.0 mmM401-0300M401-0300A
3.5mm12.0 mm50.0 mm4.0 mmM401-0350M401-0350A
4.0mm14.0 mm50.0 mm4.0 mmM401-0400M401-0400A
4.5mm16.0 mm50.0 mm5.0 mmM401-0450M401-0450A
5.0mm16.0 mm50.0 mm5.0 mmM401-0500M401-0500A
6.0mm19.0 mm63.0 mm6.0 mmM401-0600M401-0600A
7.0mm22.0 mm63.0 mm8.0 mmM401-0700M401-0700A
8.0mm22.0 mm63.0 mm8.0 mmM401-0800M401-0800A
9.0mm22.0 mm63.0 mm10.0 mmM401-0900M401-0900A
10.0 mm25.0 mm63.0 mm10.0 mmM401-1000M401-1000A
11.0 mm25.0 mm76.0 mm11.0 mmM401-1100M401-1100A
12.0 mm25.0 mm76.0 mm12.0 mmM401-1200M401-1200A
13.0 mm32.0 mm89.0 mm14.0 mmM401-1300M401-1300A
14.0 mm32.0 mm89.0 mm14.0 mmM401-1400M401-1400A
15.0 mm35.0 mm89.0 mm16.0 mmM401-1500M401-1500A
16.0 mm38.0 mm89.0 mm16.0 mmM401-1600M401-1600A
18.0 mm38.0 mm100.0 mm18.0 mmM401-1800M401-1800A
20.0 mm38.0 mm100.0 mm20.0 mmM401-2000M401-2000A
22.0 mm38.0 mm100.0 mm22.0 mmM401-2200M401-2200A
25.0 mm38.0 mm100.0 mm25.0 mmM401-2500M401-2500A
