Perfect Pitch

5 flute variable geometry end mill



FLUTESEND STYLESMATERIALCOATING OPTIONS
5Square, Corner Rad, & BallCarbideTiAlN

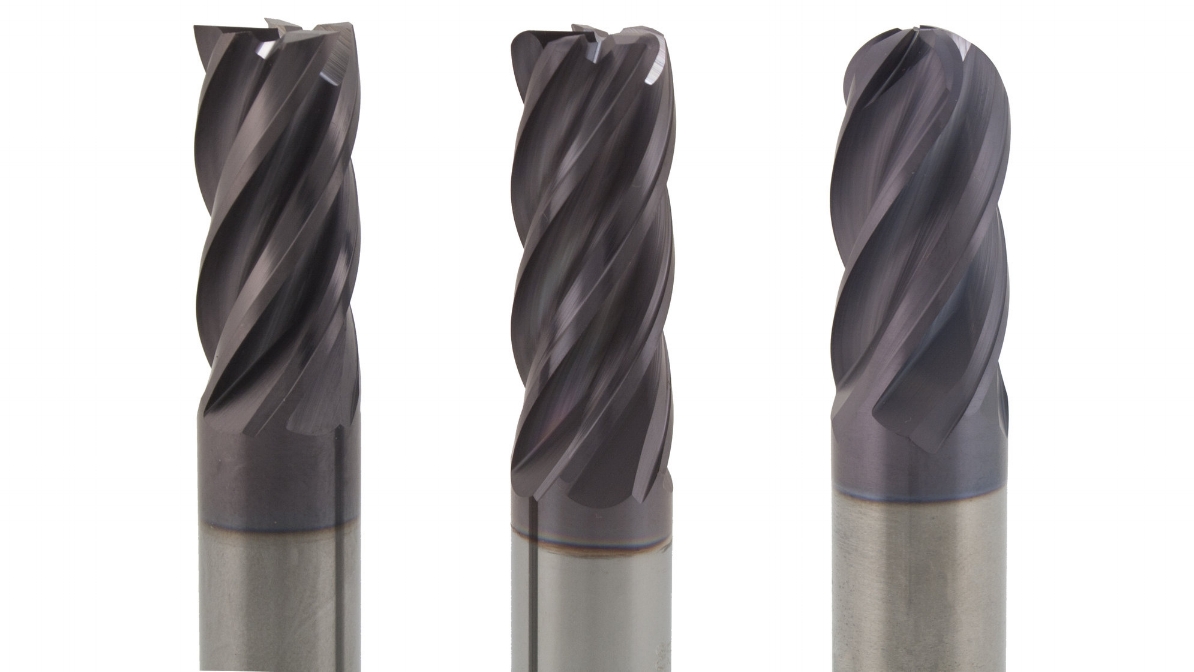

Perfect Pitch 5 Flute.jpg

KEY FEATURES:

  • Variable 5 flute geometry drastically reduces the harmonics produced when machining allowing for increased speeds and feeds.
  • Center cutting
  • Inch sizes stocked - Metric available upon request.
  • H6 shank tolerance.
  • Premium sub-micron grade carbide.
  • Alternate coatings available to tailor the tool to your application.

Proudly made in Canada.

Square End - Inch
CUTTING DIA.L.O.C.O.A.L.SHANK DIA.REACHTiAlN
1/2"3/4"3"1/2" 5U0-0500-08-30
1/2"1"3"1/2" 5U0-0500-10-30
1/2"1-1/4"3"1/2" 5U0-0500-13-30
1/2"1-1/4"4"1/2"2"5U0-0500-13-40-R20
1/2"1-1/4"6"1/2"4"5U0-0500-13-60-R40
1/2"1-1/4"8"1/2"6"5U0-0500-13-80-R60
5/8"3/4"3-1/2"5/8" 5U0-0625-08-35
5/8"1-1/4"3-1/2"5/8" 5U0-0625-13-35
5/8"1-1/4"6"5/8"4"5U0-0625-13-60-R40
5/8"1-1/4"8"5/8"6"5U0-0625-13-80-R40
3/4"1"4"3/4" 5U0-0750-10-30
3/4"1-1/2"4"3/4" 5U0-0750-15-40
3/4"1-1/2"6"3/4"4"5U0-0750-15-60-R40
3/4"1-1/2"8"3/4"6"5U0-0750-15-80-R60
1"1-1/4"3"1" 5U0-1000-13-30
1"1-1/2"4"1" 5U0-1000-15-40
1"1-1/2"6"1"4"5U0-1000-15-60-R40
1"1-1/2"8"1"6"5U0-1000-15-80-R60
1-1/4"2-1/4"6"1-1/4"3"5U0-1250-23-60-R30
Corner Rad - Inch
CUTTING DIA.L.O.C.O.A.L.SHANK DIA.REACHRADIUSTiAlN
1/2"3/4"3"1/2" 0.03"5U3-0500-08-30-030
1/2"1"3"1/2" 0.03"5U3-0500-10-30-030
1/2"1-1/4"3"1/2" 0.03"5U3-0500-13-30-030
1/2"1-1/4"4"1/2"2"0.03"5U3-0500-13-40-R20-030
1/2"1-1/4"6"1/2"4"0.03"5U3-0500-13-60-R40-030
1/2"1-1/4"8"1/2"6"0.03"5U3-0500-13-80-R60-030
5/8"3/4"3-1/2"5/8" 0.03"5U3-0625-08-35-030
5/8"1-1/4"3-1/2"5/8" 0.03"5U3-0625-13-35-030
5/8"1-1/4"6"5/8"4"0.03"5U3-0625-13-60-R40-030
5/8"1-1/4"8"5/8"6"0.03"5U3-0625-13-80-R40-030
3/4"1"4"3/4" 0.03"5U3-0750-10-30-030
3/4"1-1/2"4"3/4" 0.03"5U3-0750-15-40-030
3/4"1-1/2"6"3/4"4"0.03"5U3-0750-15-60-R40-030
3/4"1-1/2"8"3/4"6"0.03"5U3-0750-15-80-R60-030
1"1-1/4"3"1" 0.03"5U3-1000-13-30-030
1"1-1/2"4"1" 0.03"5U3-1000-15-40-030
1"1-1/2"6"1"4"0.03"5U3-1000-15-60-R40-030
1"1-1/2"8"1"6"0.03"5U3-1000-15-80-R60-030
1-1/4"2-1/4"6"1-1/4"3"0.03"5U3-1250-23-60-R30-030
Ball Nose - Inch
CUTTING DIA.L.O.C.O.A.L.SHANK DIA.REACHTiAlN
1/2"1"3"1/2" 5U1-0500-10-30
1/2"1-1/4"3"1/2" 5U1-0500-13-30
5/8"1-1/4"3-1/2"5/8" 5U1-0625-13-35
3/4"1"4"3/4" 5U1-0750-10-30
3/4"1-1/2"4"3/4" 5U1-0750-15-40
1"1-1/2"4"1" 5U1-1000-15-40
1-1/4"2-1/4"6"1-1/4"3"5U1-1250-23-60-R30
