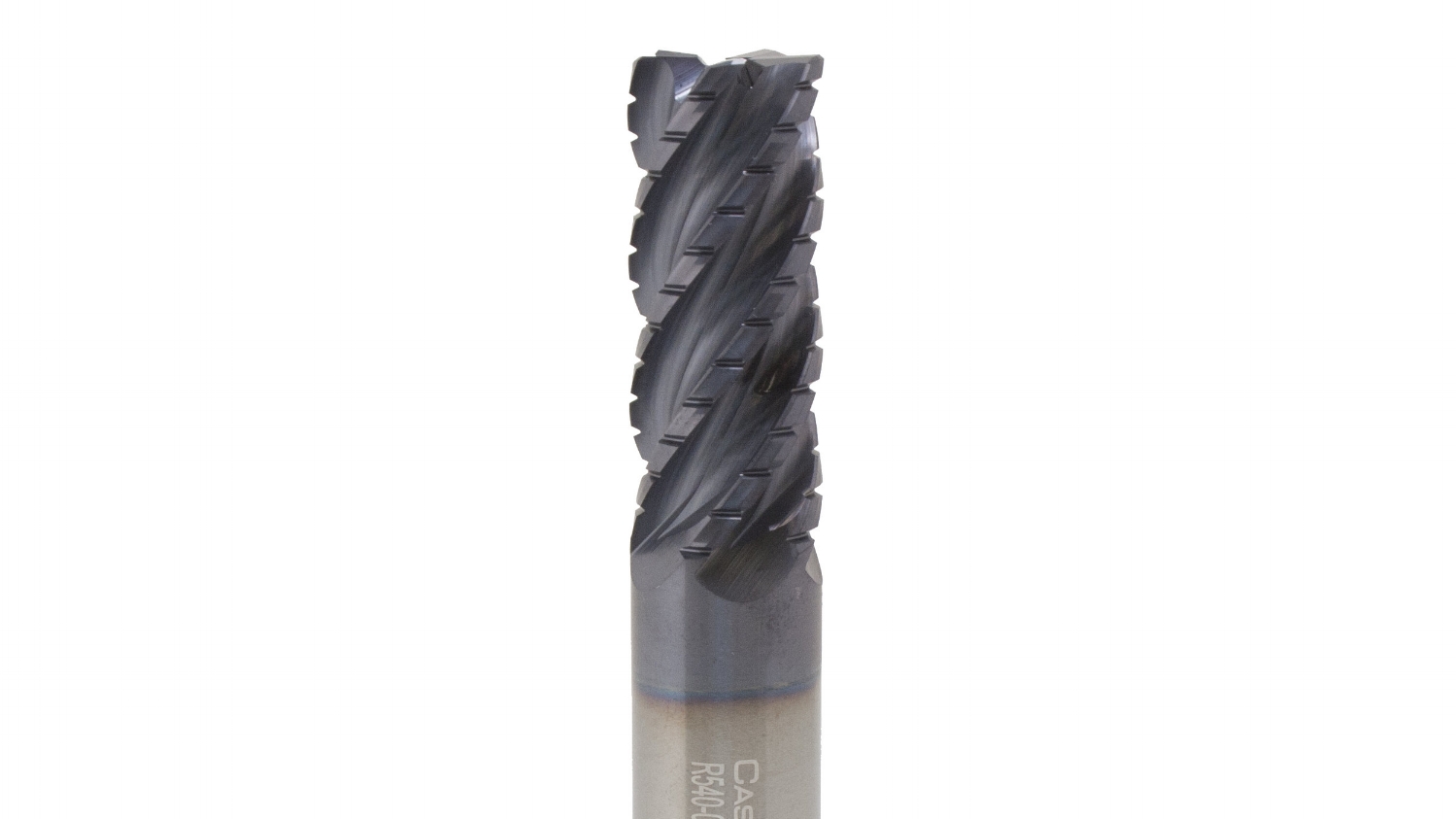

Series R540

roughing end mill

FlutesEnd StyleMaterialCoating Options
5Square EndCarbideUncoated, TiAlN

KEY FEATURES:

  • Designed for peripheral roughing applications
  • 5 Flute design with chip breakers allows for enhanced flute durability for high speeds and feeds
  • Center cutting
  • Inch sizes stocked - Metric available upon request.
  • H6 shank tolerance.
  • Premium sub-micron grade carbide.
  • Alternate coatings available to tailor the tool to your application.

Proudly made in Canada.

CUTTING DIA.LOCOALSHANK DIA.UNCOATEDTiAlN
1/8"1/2"1-1/2"1/8"R540-0125R540-0125A
3/16"5/8"2"3/16"R540-0187R540-0187A
1/4"3/4"2-1/2"1/4"R540-0250R540-0250A
5/16"13/16"2-1/2"5/16"R540-0312R540-0312A
3/8"1"2-1/2"3/8"R540-0375R540-0375A
7/16"1"2-3/4"7/16"R540-0437R540-0437A
1/2"1"3"1/2"R540-0500R540-0500A
5/8"1-1/4"3-1/2"5/8"R540-0625R540-0625A
3/4"1-1/2"4"3/4"R540-0750R540-0750A
1"1-1/2"4"1"R540-1000R540-1000A
