straight flute

2 flute end mill

FlutesEnd StylesMaterialCoating Options
2Square, & BallCarbideUncoated

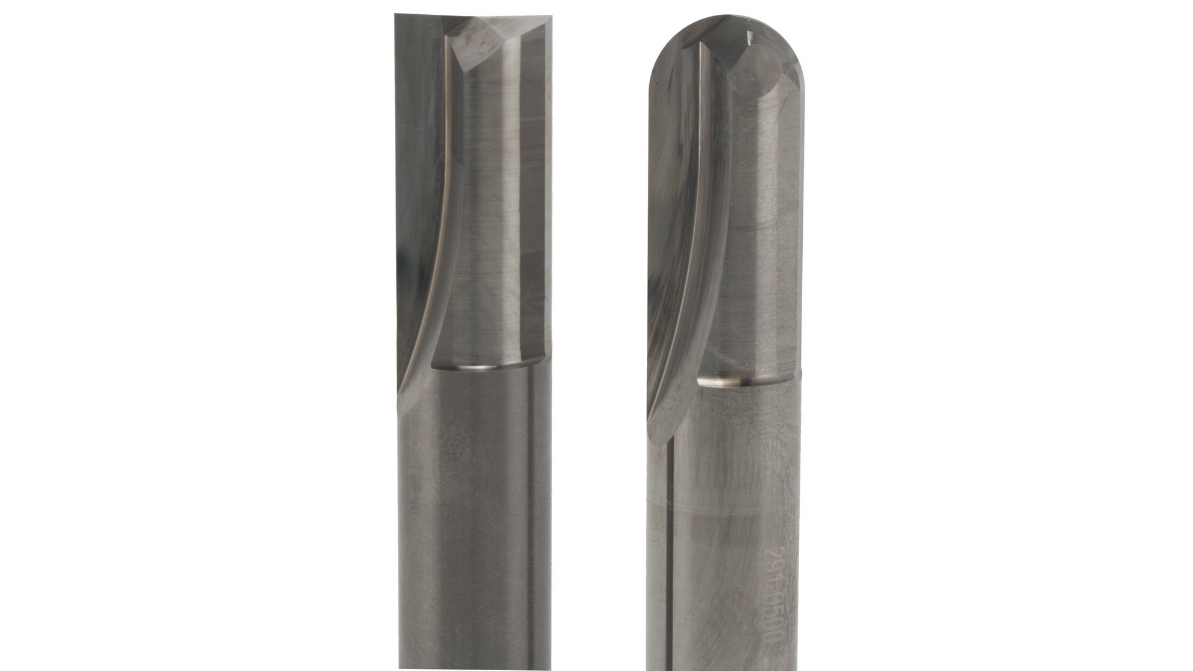

2 Straight Flute Editted.jpg

KEY FEATURES:

  • 2 flute geometry allows for enhanced chip evacuation, while maximizing corner cutting edge strength.
  • Excellent for machining keyways.
  • Designed for machining hard materials such as hardened steel, steel weldments, and cast iron.
  • Center cutting
  • Inch sizes stocked - Metric available upon request.
  • H6 shank tolerance.
  • Premium sub-micron grade carbide.
  • Alternate coatings available to tailor the tool to your application.

Proudly made in Canada.
Click here for 4 flute version

Square End - Inch
CUTTING DIA.LOCOALSHANK DIA.UNCOATED
1/8"1/2"1-1/2"1/8"290-0125
5/32"9/16"2"3/16"290-0156
3/16"5/8"2"3/16"290-0187
7/32"5/8"2-1/2"1/4"290-0218
1/4"3/4"2-1/2"1/4"290-0250
1/4"1"6"1/4"290-0250-10-60
9/32"3/4"2-1/2"5/16"290-0281
5/16"13/16"2-1/2"5/16"290-0312
5/16"1"6"5/16"290-0312-10-60
3/8"1"2-1/2"3/8"290-0375
3/8"1"6"3/8"290-0375-10-60
7/16"1"2-3/4"7/16"290-0437
1/2"1"3"1/2"290-0500
1/2"1-3/8"6"1/2"290-0500-13-60
9/16"1-1/8"3-1/2"9/16"290-0562
5/8"1-1/4"3-1/2"5/8"290-0625
11/16"1-3/8"4"3/4"290-0687
3/4"1-1/2"4"3/4"290-0750
1"1-1/2"4"1"290-1000
Ball Nose - Inch
CUTTING DIA.LOCOALSHANK DIA.Uncoated
1/16"3/16"1-1/2"1/8"291-0062
3/32"5/16"1-1/2"1/8"291-0093
1/8"1/2"1-1/2"1/8"291-0125
5/32"9/16"2"3/16"291-0156
3/16"5/8"2"3/16"291-0187
7/32"5/8"2-1/2"1/4"291-0218
1/4"3/4"2-1/2"1/4"291-0250
1/4"1"6"1/4"291-0250-10-60
9/32"3/4"2-1/2"5/16"291-0281
5/16"13/16"2-1/2"5/16"291-0312
5/16"1"6"5/16"291-0312-10-60
3/8"1"2-1/2"3/8"291-0375
3/8"1"6"3/8"291-0375-10-60
7/16"1"2-3/4"7/16"291-0437
1/2"1"3"1/2"291-0500
1/2"1-3/8"6"1/2"291-0500-13-60
9/16"1-1/8"3-1/2"9/16"291-0562
5/8"1-1/4"3-1/2"5/8"291-0625
11/16"1-3/8"4"3/4"291-0687
3/4"1-1/2"4"3/4"291-0750
1"1-1/2"4"1"291-1000
